GKGR Series General Mining Medium Voltage Soft Starter
Multiple security protection(up to 9)
Compatible with various installation environments
High protection level(for cabinet)：IP54
Flexible starting modes
The GKGR series mine general medium-voltage soft start control cabinet adopts DSP control technology. During startup, it detects current and power factor, controls output voltage, and reduces starting current to ensure smooth motor startup. Upon stopping, it controls output voltage and gradually decreases running current for a smooth motor stop. This effectively reduces the starting impact current of the motor, minimizes the impact on the power grid, and also reduces the mechanical impact force on the mechanical load devices connected to the motor, extending the equipment's lifespan and lowering the later operational and maintenance costs. The product also features protection functions against overload, three-phase imbalance, phase loss, undervoltage, starting overcurrent, and starting timeout faults. It is mainly suitable for the control and protection of starting, running, and stopping large power asynchronous or synchronous motors.
Classification：
Medium Voltage Soft Starter
Key words：
Product Consulting
Product Details

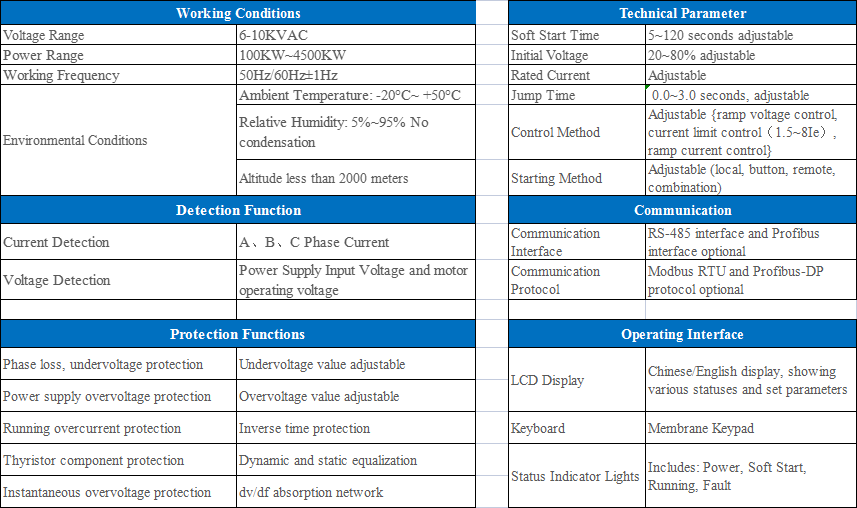

Specifications
Application areas
◆ The high-voltage main circuit and control system use internationally advanced signal isolation technology.
◆ The controller adopts a dual CPU system, with instruction pipeline operation, fast response speed, and core control execution.
◆ Parameter setting, text display, and data communication are managed in a coordinated, unified, efficient, and reliable manner.
◆ Four starting modes for more flexible starting and more convenient operation.
◆ Three major starting modes for users to choose from based on different working conditions.
◆ Nine levels of protection to handle various emergency conditions, providing more assurance for your equipment.
◆ The top rain shield and the main body have a split design (optional installation), compatible with various installation environments, with a grille-type heat dissipation duct design for quick heat dissipation to protect internal equipment. The cabinet protection level is IP54.
◆ LCD high-definition display screen, with menu display in Chinese or English, more in line with the usage habits of domestic and foreign users, making operation more convenient.
◆ Smooth and stable starting to rated speed, with no significant mechanical impact on the motor and load during starting, extending the mechanical service life and maintenance cycle, effectively reducing operation and maintenance costs.
The GKGR series mining general medium voltage soft start control cabinet consists of voltage sampling components, thyristor components, high-voltage vacuum contactors, over-voltage protectors, current transformers, and electronic control systems.
The GKGR series mining general medium voltage soft start control cabinet is widely used in industries such as coal mines, non-coal mines, power systems, machinery manufacturing, cement production, metallurgy, oil extraction, chemical engineering, and water treatment for AC asynchronous and synchronous motors. It is used for starting, controlling, protecting, and soft stopping three-phase voltage 6KV-10KV medium voltage motors.
